TZJL vertical slurry pumps

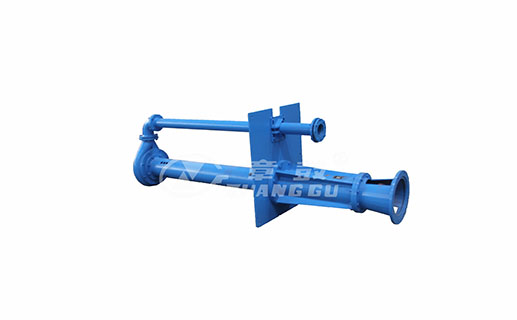

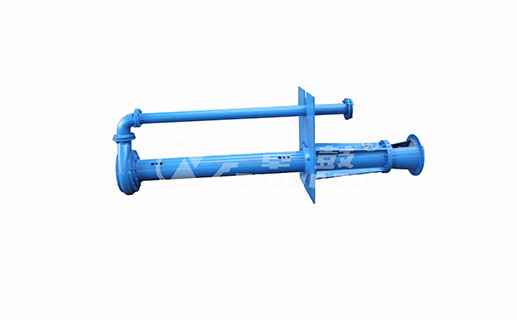

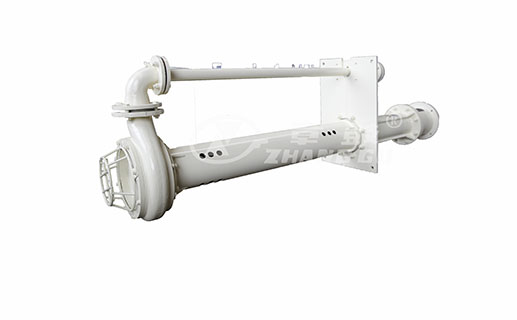

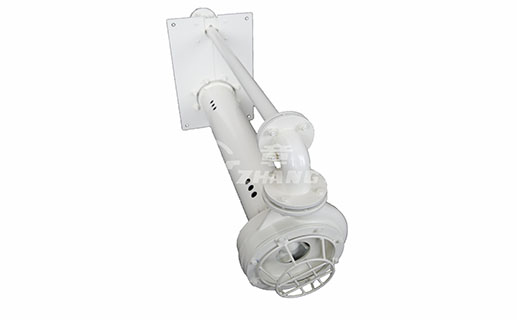

TZJL series submerged pumps are vertical single-stage single-suction centrifugal pumps. They have semi-open impellers with mixing blades on the suction side of the impeller, which can avoid blocking and sedimentation, and prevent solid particles from settling at the bottom of the pool and cannot be pumped.
Main applications:
TZJL series submerged pumps are vertical single-stage single-suction centrifugal pumps. They have semi-open impellers with mixing blades on the suction side of the impeller, which can avoid blocking and sedimentation, and prevent solid particles from settling at the bottom of the pool and cannot be pumped.
The TZJL series submerged slurry pump is a multi-purpose pump with better performance than the current domestic same type pump after repeated practice based on the experience of the same type pump at home and abroad. It provides reliable, durable, efficient and economical advanced products for all sectors of the national economy of China.
TZJL series submerged slurry pump can be used in environmental protection, oil refineries, water supply and drainage plants, thermal power plants, coking plants, municipal engineering, coal mines, printing and dyeing, papermaking, factories and other industries to pump concentrated liquid, thickened oil, oil residue, and dirt liquid, mud, mortar, quicksand, flowing sludge, and liquids containing coal lumps, coal slag, and coal ash; it can be used for pumping waste water containing residues in chemical, pharmaceutical and other units; it can be used for draining fluids containing mud and sand in mines; it can also be used for irrigation and drainage of farmland, as well as pumping river mud, pond mud, pond water, slurry, etc.
Main features:
1.High machining precision.
2.It runs in the liquid without water injection.
3.The pump has advanced structure and high degree of generalization, which is reliable in operation and easy to install and maintain.
4.Adopting efficient new type impeller.
5.The wet part material is wear-resistant and has long service life.
6. A wide range of steady working condition.
7. The pump can use DC drive, as well as Belt Drive.
Technical data of vertical slurry pump
|
Model |
Size range (discharge) (mm) |
Diameter range of impeller (mm) |
Q Capacity (m3/h) |
H Head (m) |
n Speed (r/min) |
Pump weight (kg) |
|
TZJL |
40–150 |
200–390 |
8–300 |
6.7–61 |
730–1480 |
300–950 |
